Doors Catalog
French Doors

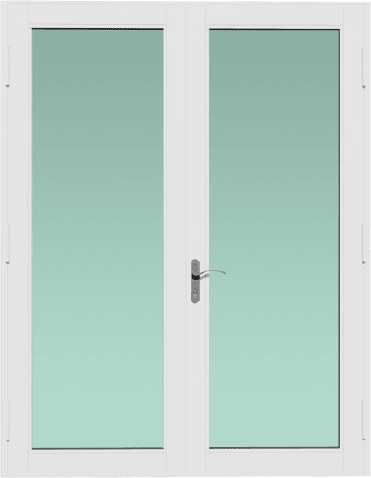

E600
MAXIMUM
WIDTH: (X) 39 3/4” (XX) 76” (OXXO) 148”
HEIGHT: 98”
MAX SIZE: 39 3/4” x 98” (X) 76” x 98” (XX) 148” x 98” (OXXO)
DESIGN PRESSURE: +70/-75 psf
FRAME
Available in White, Bronze, Black, Clear Anodized
STANDARD FEATURES
5/16” HS/HS
NFRC certified
Prep for handle & deadbolt
Outswing only
4 3/4” bottom rail
• Florida Product Approved: Large Missile and
Small missile
OPTIONAL
7/16” HS/HS and 3/4” TMP/HS
Aluminum applied 4 1/4” colonial muntins
High bottom rail (8 1/4”)
Sidelites
EnergyefficientLoEcoatings
Glass with argon
Available Mutins:
1” Flat-Flat
1” Ogee-Flat
1” Ogee-Ogee
2 1/2” Flat-Flat
4 1/4” Plain Ogee-Flat
Available in Colonial, Brittany 6, Brittany 9

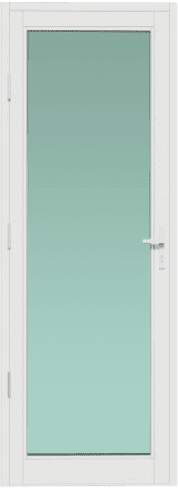

E850
MAXIMUM
FRAME DEPTH: 5”
WIDTH: (X) 45 9/16” (XX) 87 1/2”
HEIGHT: 120” w/transom 132”
DESIGN PRESSURE: +80/-80 psf
FRAME
Available in White, Bronze, Clear Anodized
STANDARD FEATURES
9/16” HS/HS
3-point lock active leaf/ 2-point lock inactive leaf
1 5/8” Residential bumper threshold
Florida Product Approval: Large Missile
Extruded snap-on glazing bead
2 1/2”, 4 1/4” colonial muntins
OPTIONAL
Integral transom
10” bottom rail
Energy efficient LoE coatings
Glass with argon
Available Mutins:
2 1/2” Flat-Flat
4 1/4” Plain Ogee-Flat
Available in Colonial

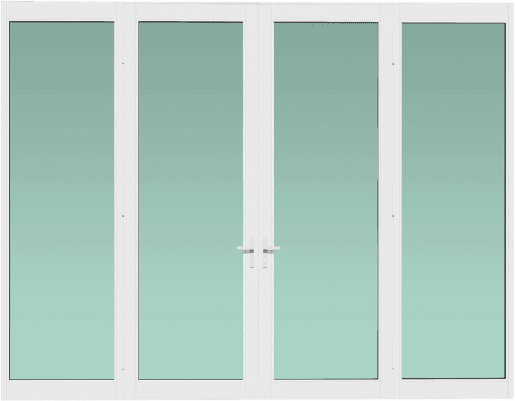

E950
MAXIMUM
FRAME DEPTH: 4”
WIDTH: (X) 39 3/4” (XX) 76 1/8”
HEIGHT: 108”
DESIGN PRESSURE: +60/-70 psf
FRAME
Available in White, Bronze, Clear Anodized
STANDARD FEATURES
7/16” HS/HS
3-point lock active leaf/2-point lock inactive leaf
Residential threshold
Florida Product Approval: Large Missile
OPTIONAL
1” TMP/HS
Energy efficient LoE coatings
Glass with argon
Sidelite
Available Mutins:
1” Flat-Flat
1” Ogee-Flat
1” Ogee-Ogee
2 1/2” Flat-Flat
4 1/4” Plain Ogee-Flat
Available in Colonial, Brittany 6, Brittany 9
Sliding Doors

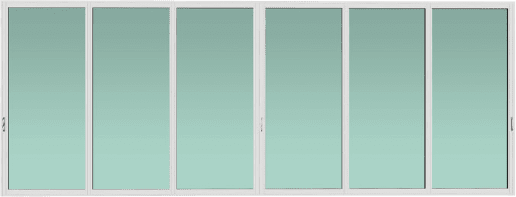

E700
MAXIMUM
WIDTH: 54”
HEIGHT: 108”
MAX PANEL SIZE: 48” x 108” or 54” x 96”
DESIGN PRESSURE: +70/-75 psf
FRAME
Available in White, Bronze, Black, Clear Anodized
STANDARD FEATURES
7/16” HS/HS
Dual-point lock assembly
1” sill riser:
(not water rated)
2” sill riser: 47 psf
2 3/4” sill riser: 70 psf
NFRC Certified
Florida Product Approval: Large Missile and
Small Missile
OPTIONAL
1” TMP/HS
Glass with argon
Energy efficient LoE coatings
E700-3 available in pocket configuration
Available Mutins:
1” Flat-Flat
1” Ogee-Flat
Available in Colonial, Brittany 6, Brittany 9

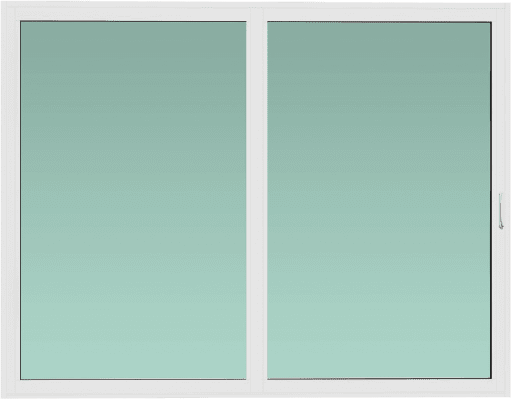

E750/755
MAXIMUM
WIDTH: 108”
HEIGHT: 96”
MAX SIZE: 60” x 96” or 48” x 120” (Panel Width x Frame Height)
DESIGN PRESSURE: +70/-130 psf with reinforced astragal
FRAME
Available in White, Bronze, Clear Anodized
STANDARD FEATURES
7/16” HS/HS
Florida Product Approval: Large Missile and Small Missile
Dual-point locking system
Reinforced astragal
OPTIONAL
Energy efficient LoE coatings
Available Mutins:
1” Flat-Flat
1” Ogee-Flat
1” Ogee-Ogee
Available in Colonial, Brittany 6, Brittany 9

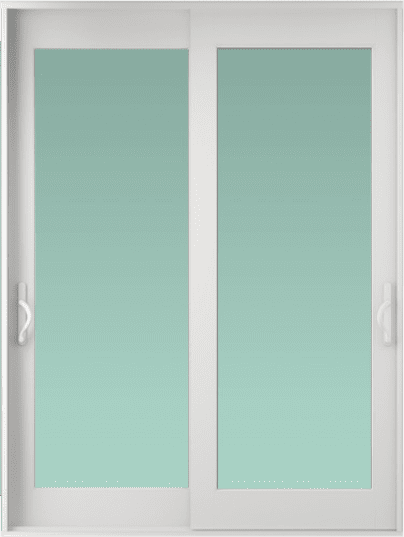

E760
MAXIMUM
PANEL HEIGHT:
Over 120” to 144”
MAX NOMINAL PANEL
WIDTH: 48”
FRAME
Available in White, Bronze, Black
STANDARD FEATURES
4” Standard bottom rail w/ optional 9” bottom rail for French-door look
Dual-point locking mechanism provides added security by restricting panels from being lifted off the tracks
Standard with ogee bead
Heavy-duty tandem rollers allow easy opening with just your fingertips
Hidden installation and assembly screws for a sleek, finished appearance
OPTIONAL
Up to eight glass door panels move horizontally along lower tracks
Expansions of up to 32’ for uninterrupted views and a great source of natural light
Pivot Doors

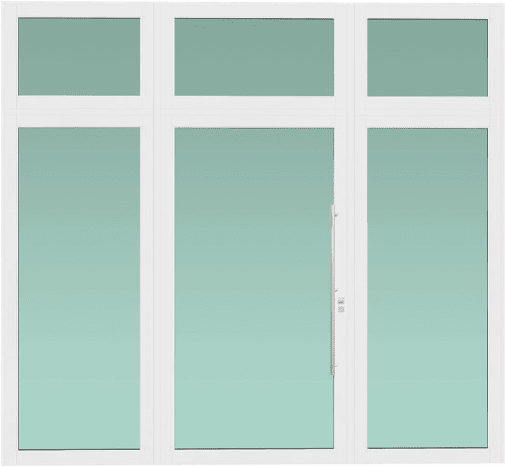

E1500
MAXIMUM
WIDTH: 60”
HEIGHT: 109 7/16 (door only)
144” (door and transom)
MAX SIZE: 156-34” x 144” (OXO with Transom)
FRAME DEPTH: 4 9/16”
MAX SIZE: 60” x 144”with transom. 60” x 110 5/8” without transom
HEIGHT: 120” w/transom 132”
DESIGN PRESSURE: +60/-60 psf
FRAME
Available in White, Bronze.
STANDARD FEATURES
7/16” HS/HS
Florida Product Approval: Large Missile
OPTIONAL
1” TMP/HS
Glass with air-filled space
9” High bottom rail
Matching Sidelites/Transoms
Garage & Bifold

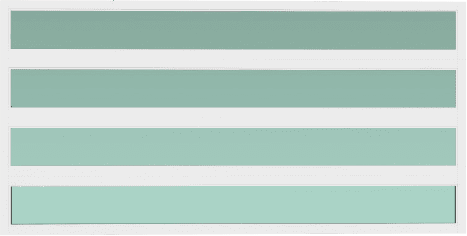

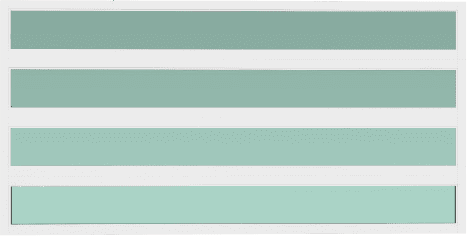

E850-12/ E850-16
MAXIMUM
WIDTH: 192”
HEIGHT: 4 section door= 96” 6 section door= 144”
MAX SIZE: 192” x 144”
DESIGN PRESSURE: +40/-45 psf
FRAME
Available in White, Bronze, Black, Clear Anodized
STANDARD FEATURES
5/16” HS/HS
Belt drive door opener
Support brackets at each track
Florida Product Approved: Large Missile
OPTIONAL
Aluminum slat insert
Chain drive door opener

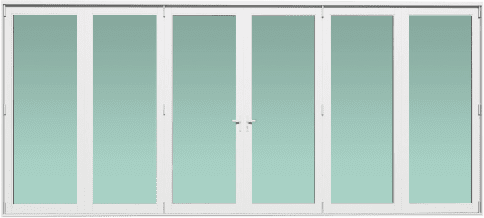

BIFOLD E900
MAXIMUM
FRAME DEPTH: 4”
WIDTH: 39 9/16”
HEIGHT: 108”
MAX SIZE: 240 3/4” x 108”
MAX WIDTH: 240 3⁄4” x 108”
DESIGN PRESSURE: +60/-60 psf
FRAME
Available in White, Bronze, Clear Anodized
STANDARD FEATURES
7/16” HS/HS • Clear, Gray, Bronze,
2-point locking system in each folding door
3-point locking system in active door
Up to 10 panels
Outswing configuration
Green, Azuria,
Obscure (White Interlayer)
1/2” Commercial saddle (ADA) or 2 1/8” residential bumper threshold
Florida Product Approval: Large Missile
OPTIONAL
1” TMP/HS
Energy efficient LoE coatings
Laminated insulating glass with argon
Frame Finishes
Frame finish colors may not be accurate representations. *Available on some products
White
Bronze
Clear Anodized*
Black*
Hazelnut Brown*
Mahogany Red*
Walnut Brown*
Glass Tints
Glass tint colors may not be accurate representations.
Clear
Gray
Bronze
Green
Azuria
Turtle Gray
White Interlayer
